Heavy transport
Do you need to transport ultra-heavy loads? If so, you will quickly realise that you need a transport solution that goes beyond standard equipment. Wagenborg Nedlift's modular trailers and SPMTs (self-propelled modular transporters) can safely, efficiently and precisely deliver your heavy load to its destination, whether it's a few metres or hundreds of kilometres away.
Modular transport: smart combinations for your project
At Wagenborg Nedlift, we combine SPMTs and modular trailers where necessary, depending on your load, route and circumstances. Everything is tailored to your project, with an eye for safety, efficiency and planning. And, of course, we also arrange the necessary permits, traffic guidance and engineering.

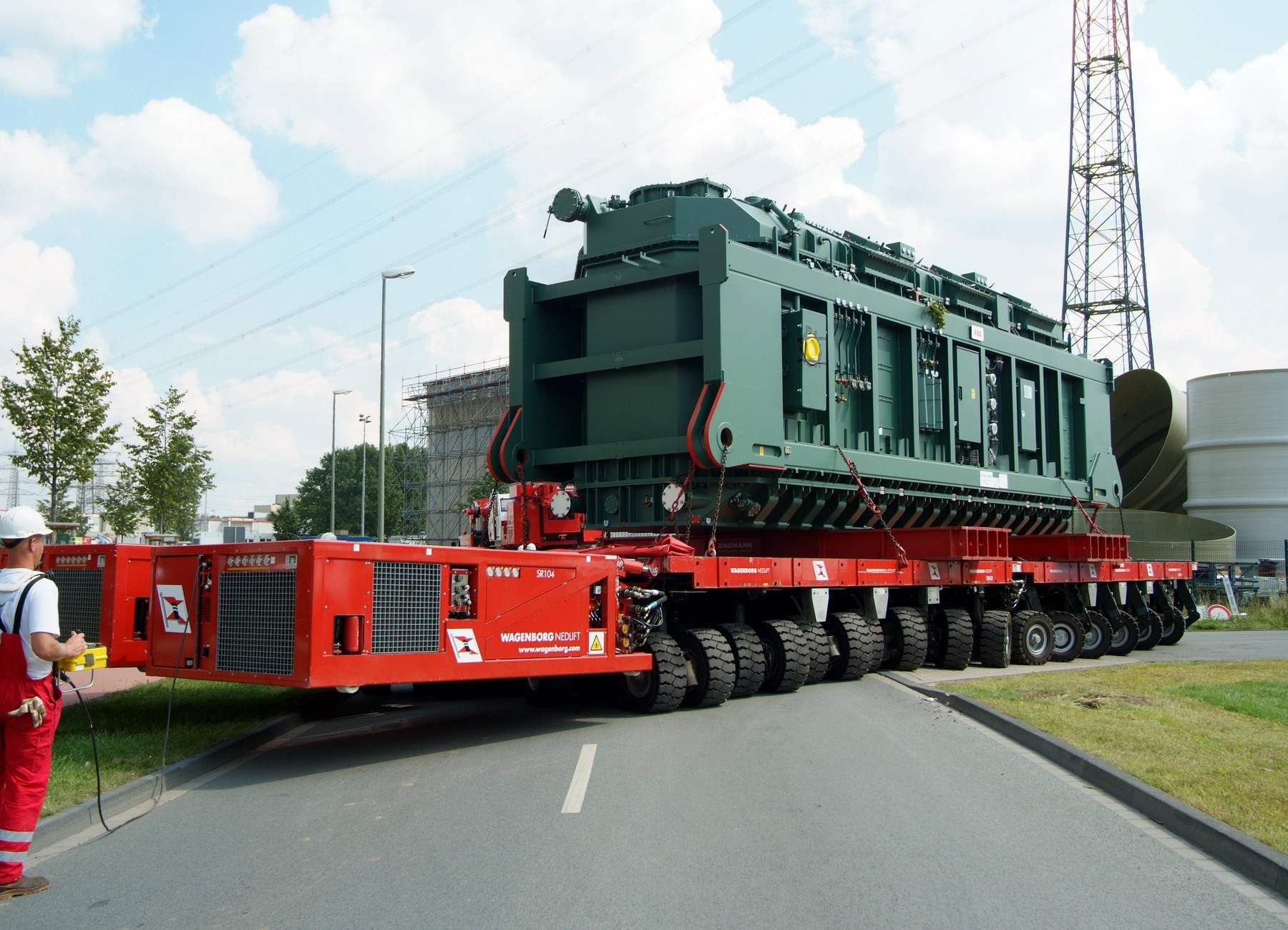

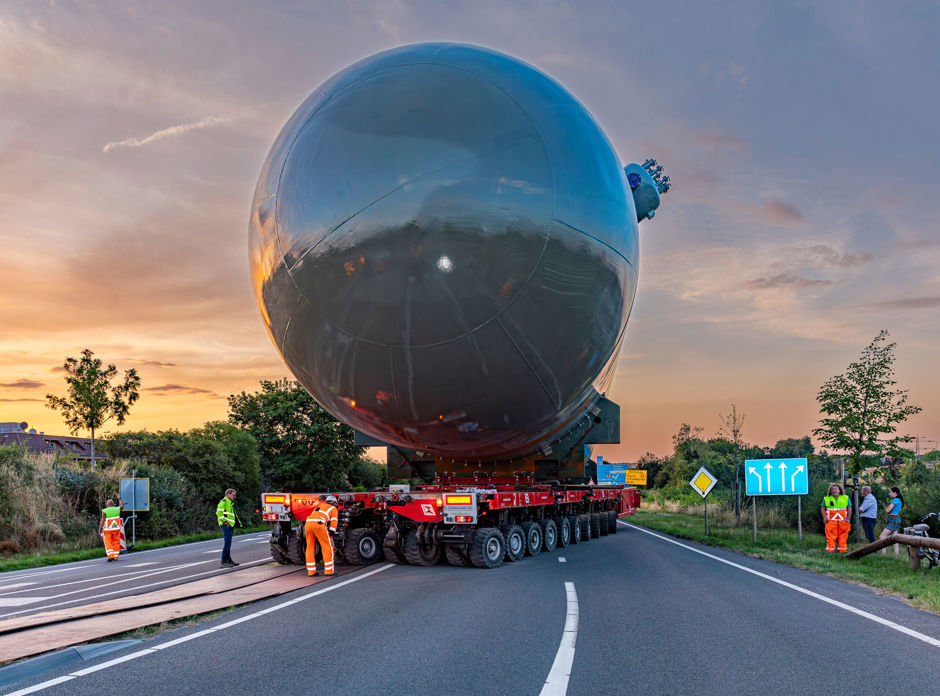

SPMT
SPMTs are a smart choice for moving extremely heavy or complex loads. These self-propelled transport modules are fully remote-controlled and can easily be linked together to form one large trailer.
Technical specifications SPMT:
- Hydrostatic drive
- Variable ride height: 1,500 mm ± 300 mm
- 360° rotating pendulum axles
- Maximum axle load: 40 tonnes
- Speed: up to 5 km/h
- Remote control operation (also wireless).
Thanks to their flexibility and precision, SPMTs allow you to manoeuvre with centimetre accuracy, even in confined spaces or on fragile surfaces.

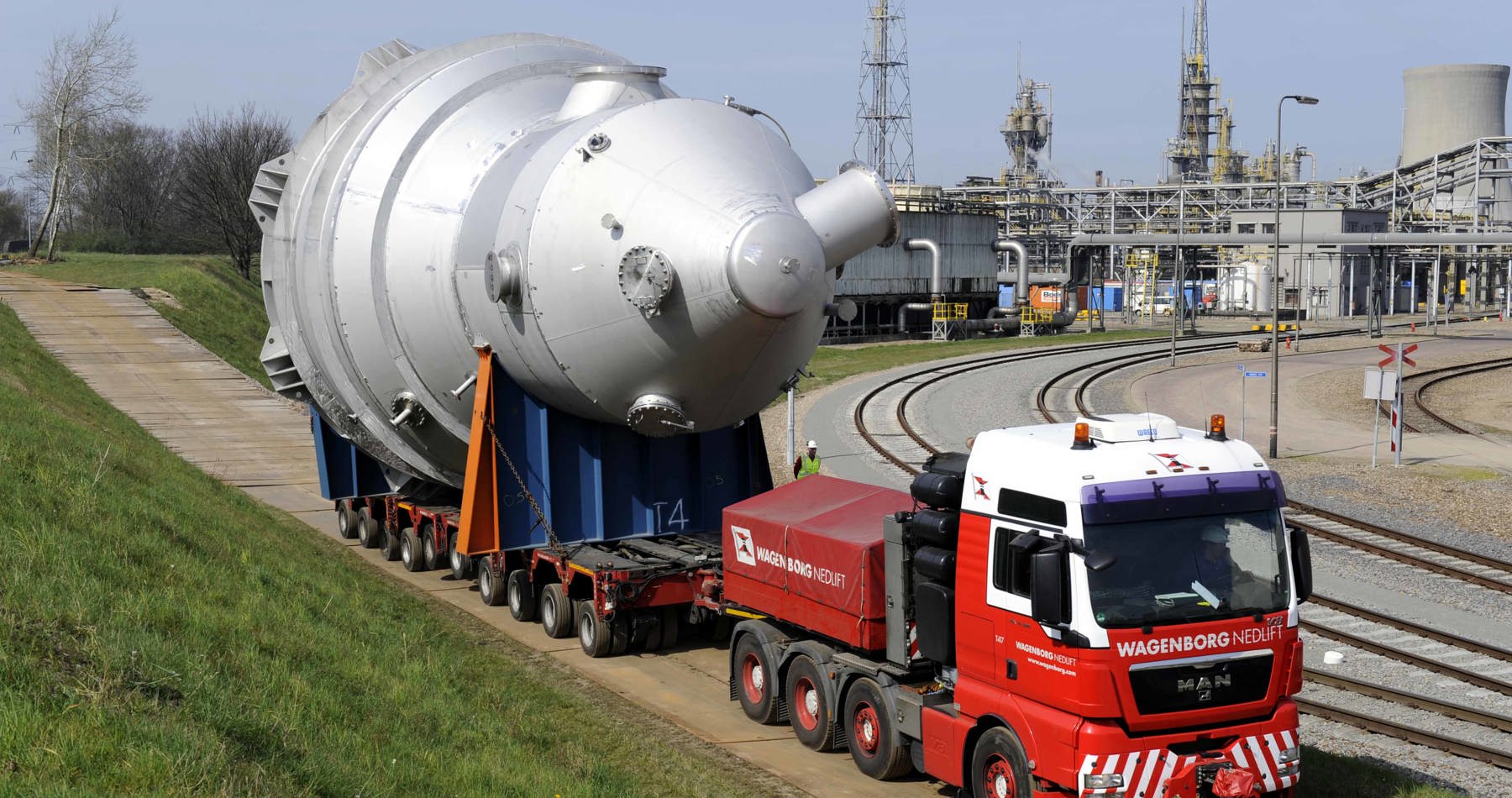

Conventional axle lines
Do you need to transport heavy loads over long distances? If so, our conventional axle lines are the perfect solution. They are powered by heavy-duty tractors and can be connected in a modular way for maximum flexibility.
Modular trailers technical specifications:
- Variable ride height: 1,200 mm ± 300 mm
- Pivot axles rotatable up to 60°
- Maximum axle load: 36 tonnes
- Speed: up to 80 km/h
- Modularly equipped with slewing rings up to 300 tonnes
The trailers are suitable for a wide range of applications, from industrial components to large wind turbine parts.
